NanoSight

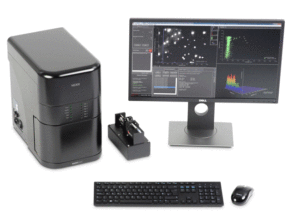

The NSPro is a innovative nano tracking analyser (NTA) from Malvern Panalytical launched in 2023. Built on the experience of the very successful NanoSight NS300, NSPro has advanced engineering and a blend of smart features that assures NTA measurements are efficient, quick, and accessible to all users. Powered by machine learning, NS Xplorer software enables automated measurements, removes subjectivity, and provides the highest quality size and concentration data for both, the light scatter and fluorescence analysis.
Interchangeable lasers allow application flexibility, whilst Smart Manager connection assures robustness without a worry for quality issues or downtime. Featuring sizing from 10nm to 1000nm, particle counting from 106 to 109 particles / mL and a minimum sample volume of 250uL, NSPro is the ideal system for Extracellular Vesicles (EV), Virus and Vaccine, Drug Delivery & Gene Therapy, Biotherapeutics, Nanomaterials/colloids/toxicology and what is often called Nano bubbles investigations.
Watch the Video or access more information from the Malvern Panalytical web site or contact our sales team.
Mastersizer

The worlds favourite laser diffraction particle size for powders, slurries, suspensions and emulsions just got better!
Malvern Panalytical’ s Mastersizer 3000+ has a full range of manual and automatic wet and dry dispersion accessories and a host of options. Sizing ranges from 0.01 to 3500 microns for the Ultra (sample and dispersion dependent)and 0.1 to 1000 for the Lab and Pro. The new Sizer software is even easier to use, intuitive and packed with utilities, including Omnitrust 21CFR part 11 features, optical properties calculator and intelligent data quality indicators.
MS3000+ Lab is the entry-level particle size analyzer for customers who do not immediately need the advanced functionality that the Mastersizer 3000+ Pro or Ultra offers – and may wish to upgrade in the field in the future.
Get more information from the Malvern Panalytical web site or contact our sales team.

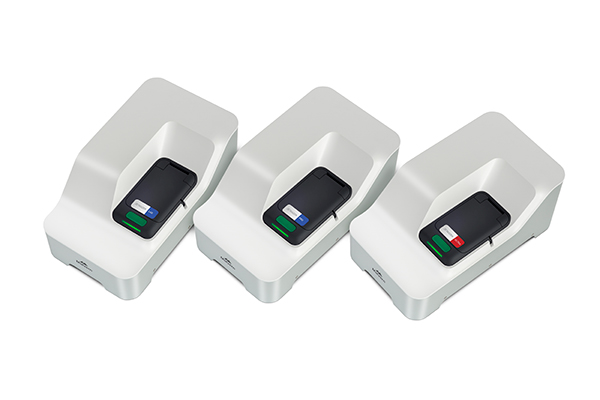

Zetasizer
The latest models of Zetasizer DLS sub-micron particle size analyser with Zp
capability and a host of new capabilities can be found in the Zetasizer Advanced range. Zetasizer Ultra brings concentration capability, multiangle capability and advanced data acquisition to routine measurements.
Each of the three models in the Zetasizer Advance Range offers particle size, particle charge (zeta potential) and molecular weight analysis. In addition, each benefits from advances including Adaptive Correlation, M3-PALS zeta potential analysis, constant current zeta mode and our deep learning-based data quality advice system.
Lab, Pro and Ultra models bring choice of capabilities while Blue and Red suit routine or more demanding applications. Take a look at the product video.
- Choose Blue Label for routine such as metallic colloids, metal oxides and pigments
- Choose Red Label for more challenging work with proteins, surfactant solutions and low solid content samples
Get more information from the Malvern Panalytical web site or contact our sales team.
.
SR-DLS
InProcess-LSP developed a new innovative technology: Spatially Resolved Dynamic Light Scattering (SR-DLS). that allows particle size characterization in process flows and can measure highly turbid suspensions without dilution.
The NanoFlowSizer technology is based on low coherence interferometry providing light scattering information as a function of optical pathlength (pathlength or depth in the sample). The depth-resolved light scattering holds information on particle movement caused by both Brownian motion as well as flow rate. The contribution due to Brownian motion is used for the calculation of the particle size characteristics, while the flow rate information is obtained instantaneously for every measurement as well.
For an overview watch this video, for more information visit the InProcess-LSP website or contact our Sales Team.
Spraytec
Malvern Panalytical’s Spraytec is the go-to analyser for the characterisation of continuous or discrete sprays and aerosols in real-time. See the droplet particle
size distribution developing and changing independently of concentration and multiple scattering.
Spraytec uses the technique of laser diffraction for the measurement of the size of spray droplets and spray particles. It does this by measuring the intensity of light scattered as a laser beam passes through a spray. This data is then analyzed to calculate the size of the droplets that created the scattering pattern.

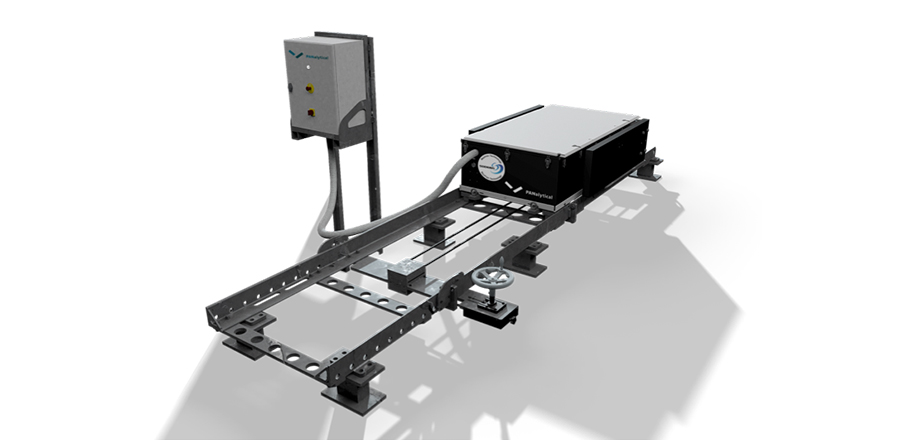

For industrial and process sprays, we offer open frame and protected Insitec Spray versions.
Get more information from the Malvern Panalytical web site or contact our sales team.
FlowCam
The FlowCam 8000 from Yokogawa Fluid Imaging combines the benefits of digital imaging, flow cytometry, and microscopy into a single instrument. Count and analyze tens of thousands of particles per minute and see your subvisible particles with superior image quality. FlowCam’s large field of view and fast camera provides great data throughput.

- Integrated auto-focus mechanism simplifies focusing and provides consistent, high-resolution images
- Automated self-rinsing and self-cleaning cycles to reduce cross contamination and increase flow cell longevity
- Redesigned optical path, high-powered laser and more sensitive PMTs to enhance fluorescence signal analysis
- Interchangeable quick-connect flow cell holder to streamline operation
Get more information from the Yokogawa Fluid Imaging web site or contact our sales team.
Morphologi

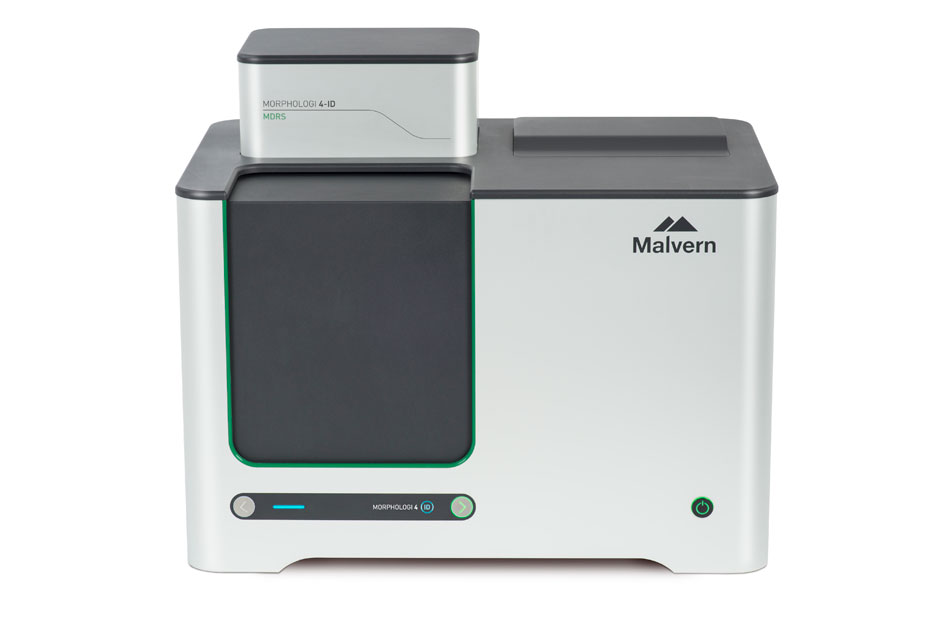

The Morphologi 4 from Malvern Panalytical is a fully automated static image analysis system for the size and shape of particles in suspensions or as dry powders. The key to Morphologi success is that each and every particle on the slide area selected is imaged by powerful and automated optics -and saved – enabling 20+ morphological parameters to be reported for a deeper understanding of your particulate material.

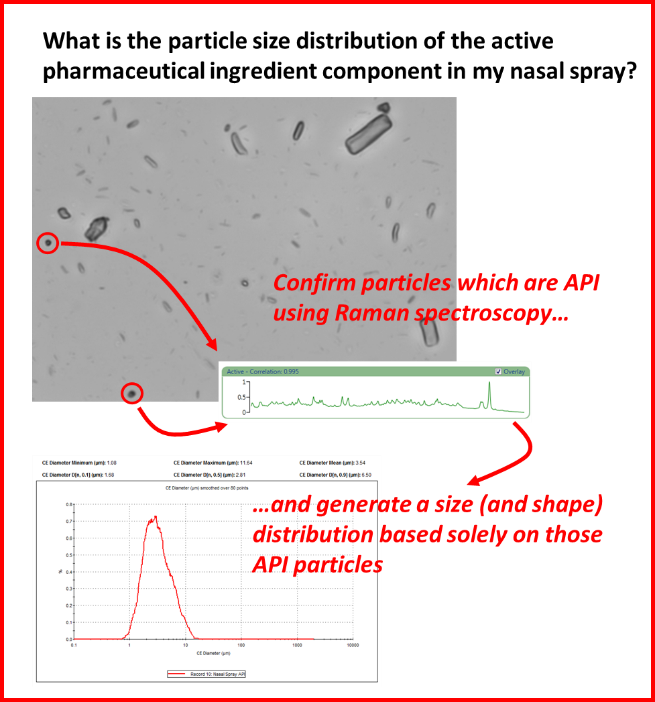

Morphologi 4-ID adds Raman spectroscopy in a single, integrated platform, providing component-specific morphological descriptions of chemical species within a blend.
Watch a video of Morphologi in action.
Get more information from the Malvern Panalytical web site or contact our sales team.
BEE Homogenisers
From small-scale R&D to large-scale manufacturing equipment, BEE electrical homogenizers provide unparalleled fluid
processing capabilities for particle size reduction, cell disruption, creating stable nanoemulsions & dispersions, and many more applications.
Cell Lysis ebook Particle size reduction ebook
The modular design of our advanced homogenization technology allows for
additional formulation manipulation to shorten development time and achieve superior end-product results.
Engineered with scalability in mind, we make transitioning from lab scale to commercial product easy. Serving pharmaceutical, biotech, botanical extracts, chemical, food and beverage industries worldwide
For more information, visit the BEE International website or contact our sales team.
